A multifunctional imaging system for chemiluminescence, fluorescence and gel documentation applications.

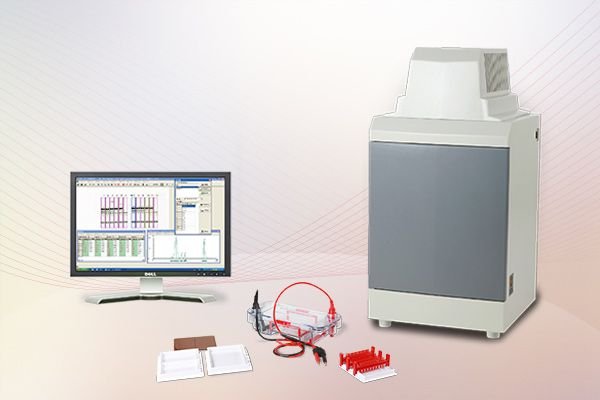

The Tanon 5200 Multi is an automated imaging system designed for chemiluminescent western blots, fluorescence imaging and routine gel documentation. It combines a cooled CCD camera, a motorized high-aperture lens and a multi-position filter wheel for sensitive capture and quantitative analysis of biological samples.
Brand: Tanon
Model: Tanon 5200 Multi
Detector: Cooled Sony ICX694 CCD
Resolution: 2750 × 2200 pixels, approximately 6.05 megapixels
Lens: Motorized F/0.8 high-aperture lens
Filter wheel: Five-position motorized filter wheel
Maximum imaging area: 16 × 20 cm
Imaging modes: Chemiluminescence, fluorescence, UV gel and white-light imaging
Applications: Western blot imaging, nucleic acid gels, protein gels and fluorescence detection
Configuration: Light sources and fluorescence modules may depend on the selected configuration
Original product link: Tanon 5200 Multi Product Page tanon.cnreagent.com
Contact Biolterna to confirm the required imaging configuration, filters, software, computer and regional power specification.
