A touchscreen small-animal ventilator supporting volume-controlled and pressure-controlled ventilation.

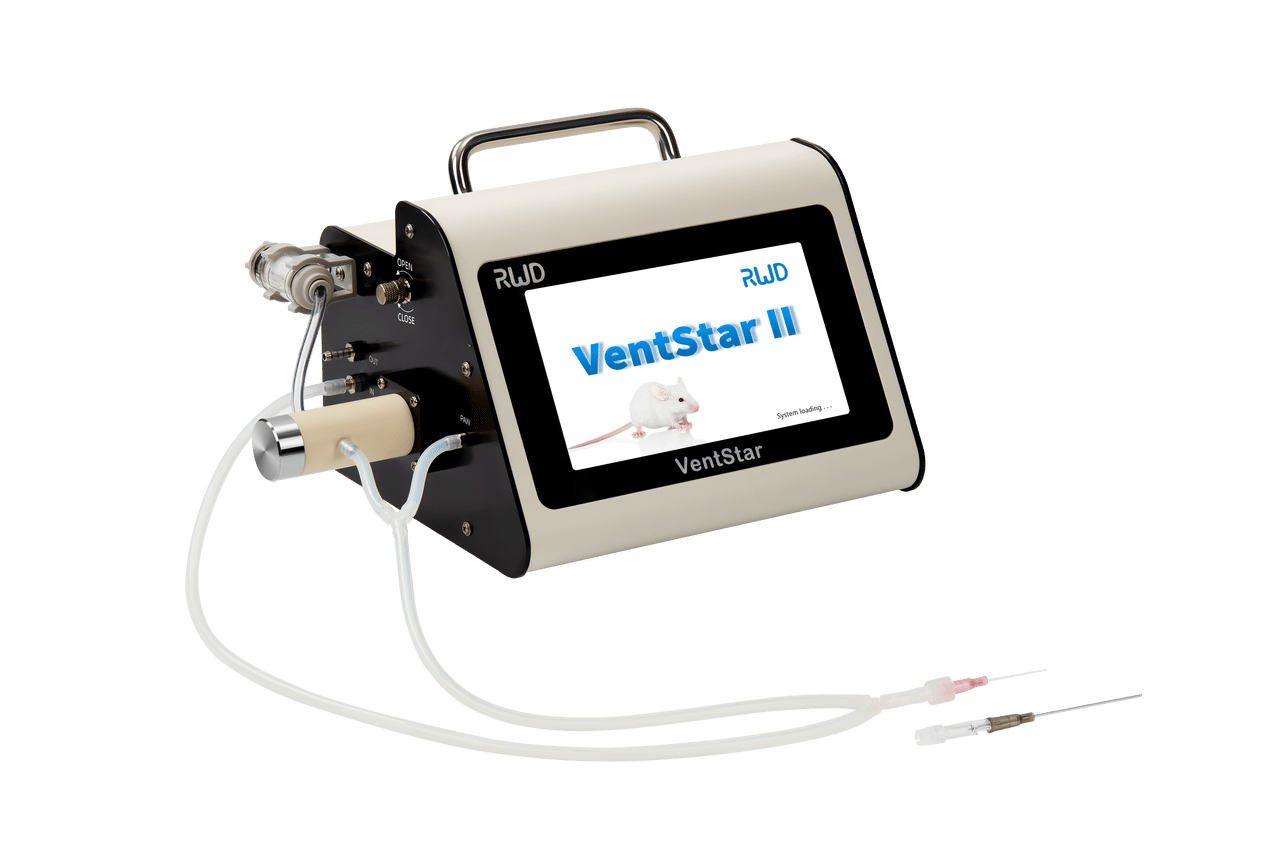

The RWD R416 VentStar II Small Animal Ventilator provides controlled respiratory support for mice, rats, guinea pigs and other laboratory animals weighing approximately 10–1,000 g.
It supports both volume-controlled and pressure-controlled ventilation and displays real-time airway pressure curves. Adjustable PEEP, sigh, inspiratory hold, expiratory hold and airway-pressure alarms support a wide range of surgical and cardiopulmonary studies.
Brand: RWD Life Science
Model: R416
Product line: VentStar II
Recommended animal weight: 10–1,000 g
Ventilation modes: Volume control and pressure control
Tidal volume range: 0.050–5.000 mL
Respiratory rate: 10–300 breaths/min
Peak inspiratory pressure: 1–50 cmH₂O
PEEP range: 0–10 cmH₂O
Display: 7-inch color touchscreen
Applications: Thoracotomy, myocardial ischemia models and cardiopulmonary research
Research use only: Not intended for human medical use
Original product link: RWD VentStar II Small Animal Ventilator RWD Life Science
Although the current product model is R416, the legacy page address contains “R415.” The link above is the current official R416 product page.
